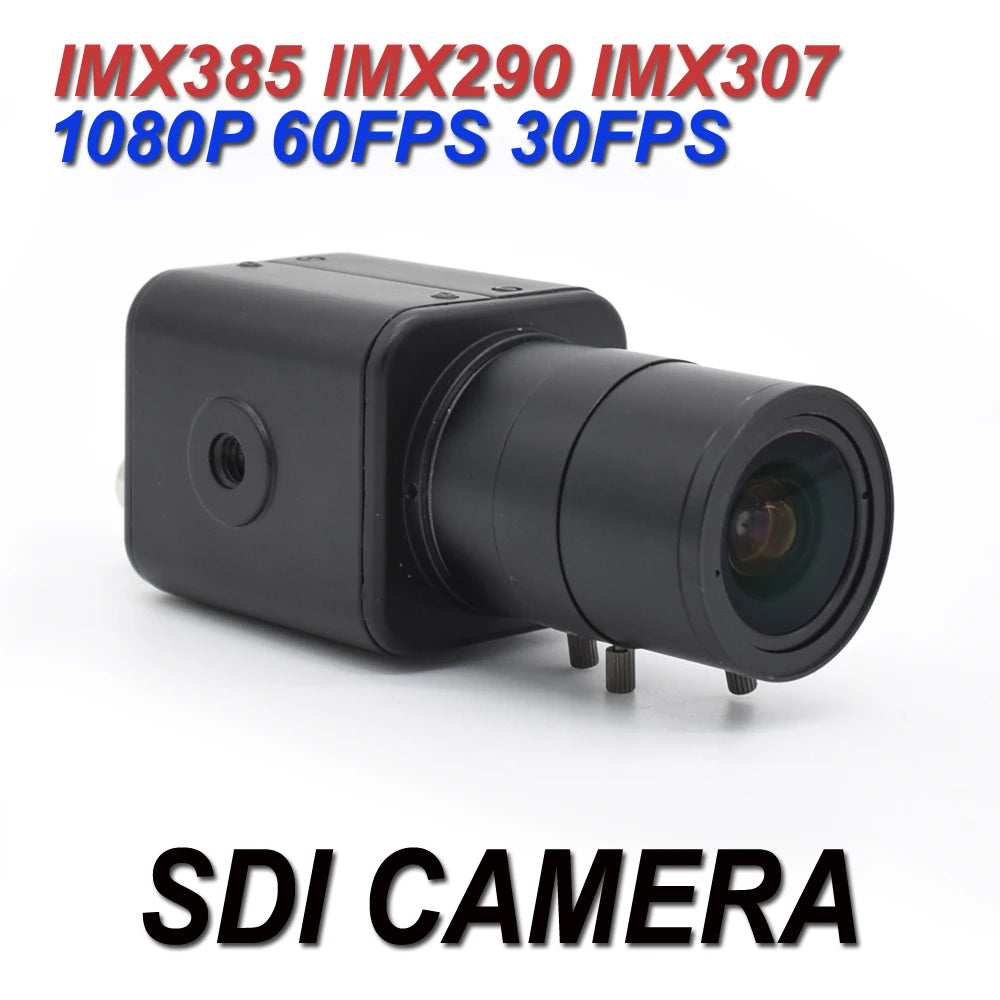

CCTV Industrial Live 3G-SDI 1/2 2.0MP 1080P 1080i 60fps/50fps 30fps Lens 2.8-12mm Security Box SDI Camera Medical Live Concert
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
AI Functions: Other
Audio Output: None
Brand Name: HQCAM
Certification: CE
Choice: yes
Color: black
Color Night Vision: No
Connectivity: Closed System/CCTV Wired
Dimensions (L x W x D)(mm): 50
High Definition: 1080P(Full-HD)
High-concerned chemical: None
IR Distance(m): NA
Installation: Normal
Internal Storage: None
Lens (mm): 2.8-12mm
Lens Quantity: Single Lens
Megapixels: 2 MP
Minimum Illumination(Lux): 0.01
Operating Temperature: -10°-60°
Origin: Mainland China
Power Source: Normal
Power Supply: Normal
Power Supply(V): 12V
Rechargeable Battery: None
Scene: Indoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Metal
Smart home platform: Other
Special Features: Vandal-proof
Style: Box Camera
Supported Operating Systems: No
TF Card: None
Viewing Angle : 90°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: 4X
Zoom type: None
is_customized: No
NOTICE:
Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

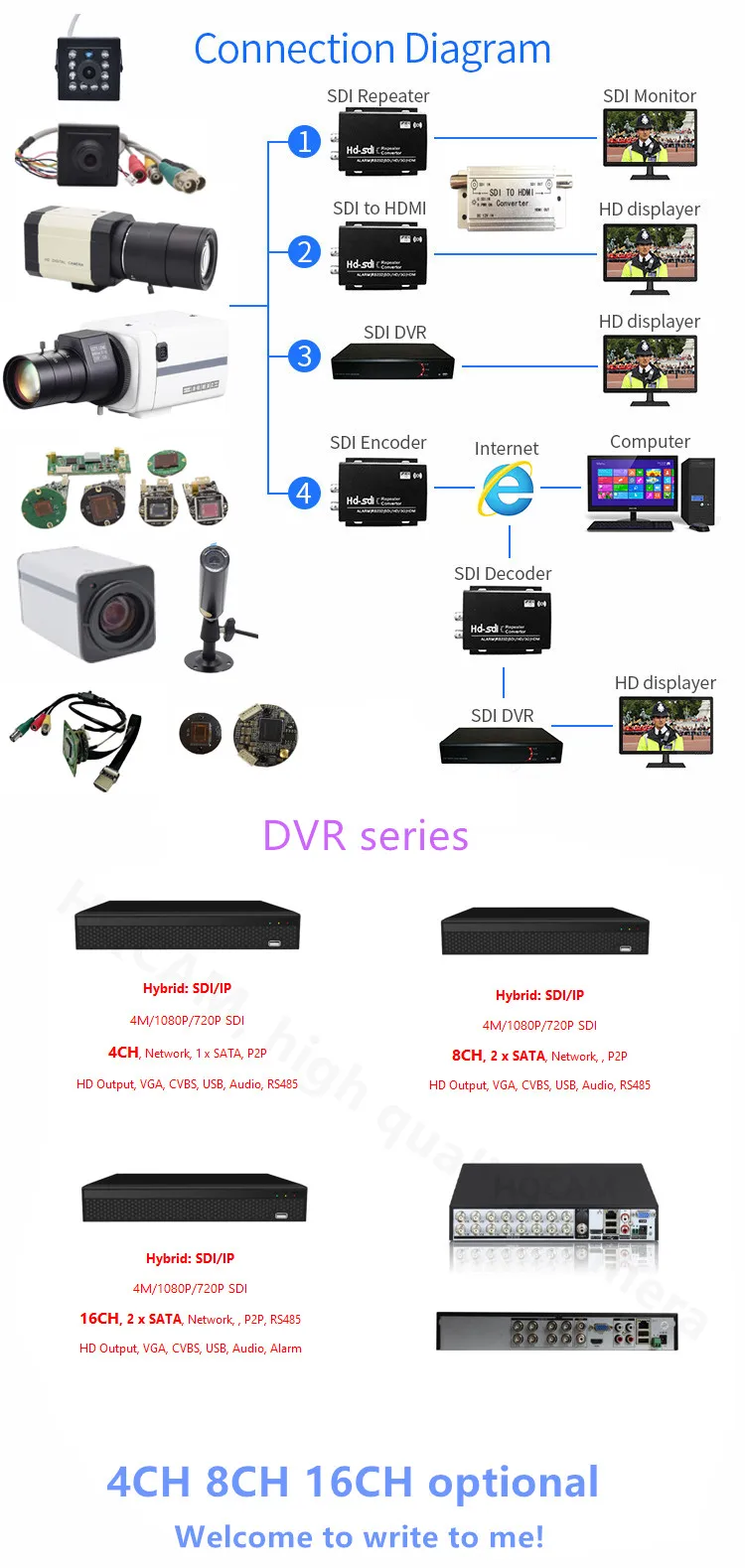

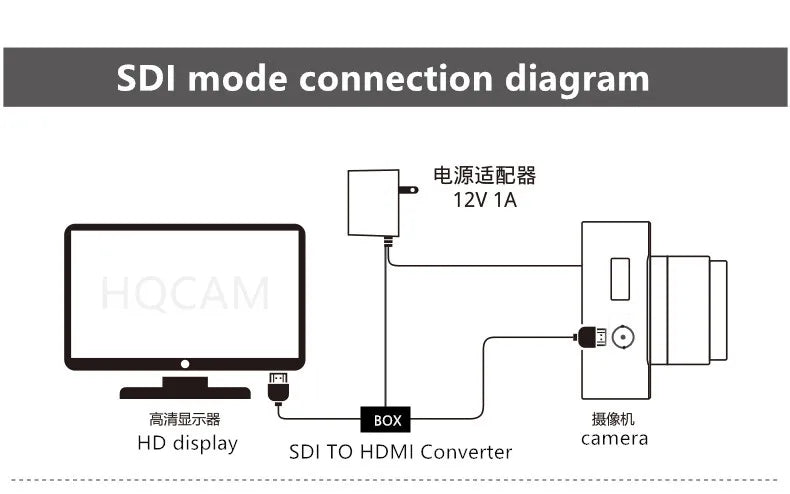

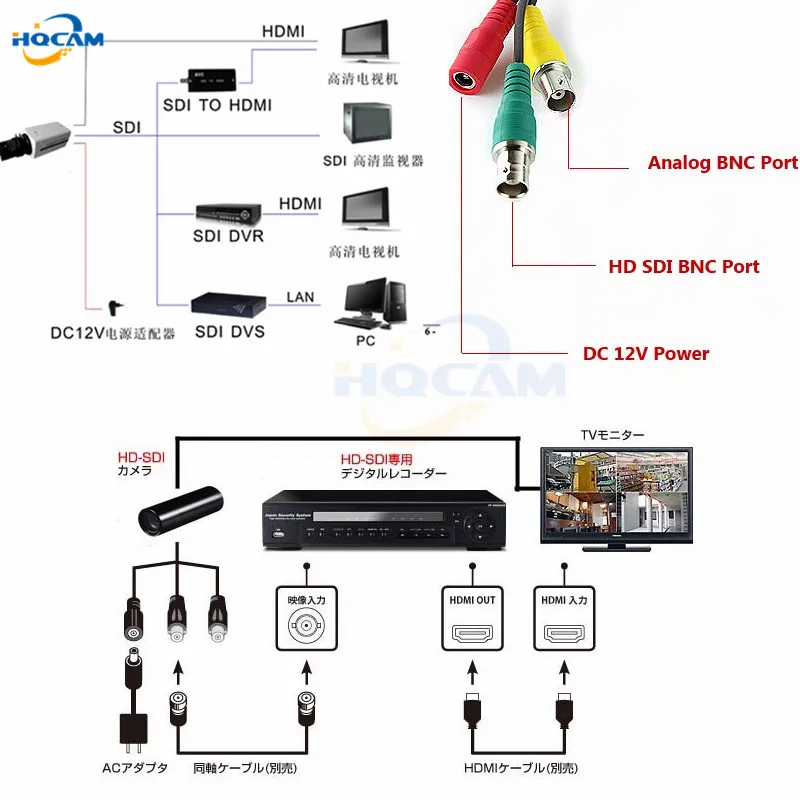

This product is a camera with SDI signal output function. When using it, it is necessary to connect an SDI digital video recorder or an SDI to HDMI converter in order to work properly. Among them, IMX290 and IMX385 support 1080P 60fps output. Please ensure that your display supports 50fps（50Hz）60fps（60Hz）resolution output.

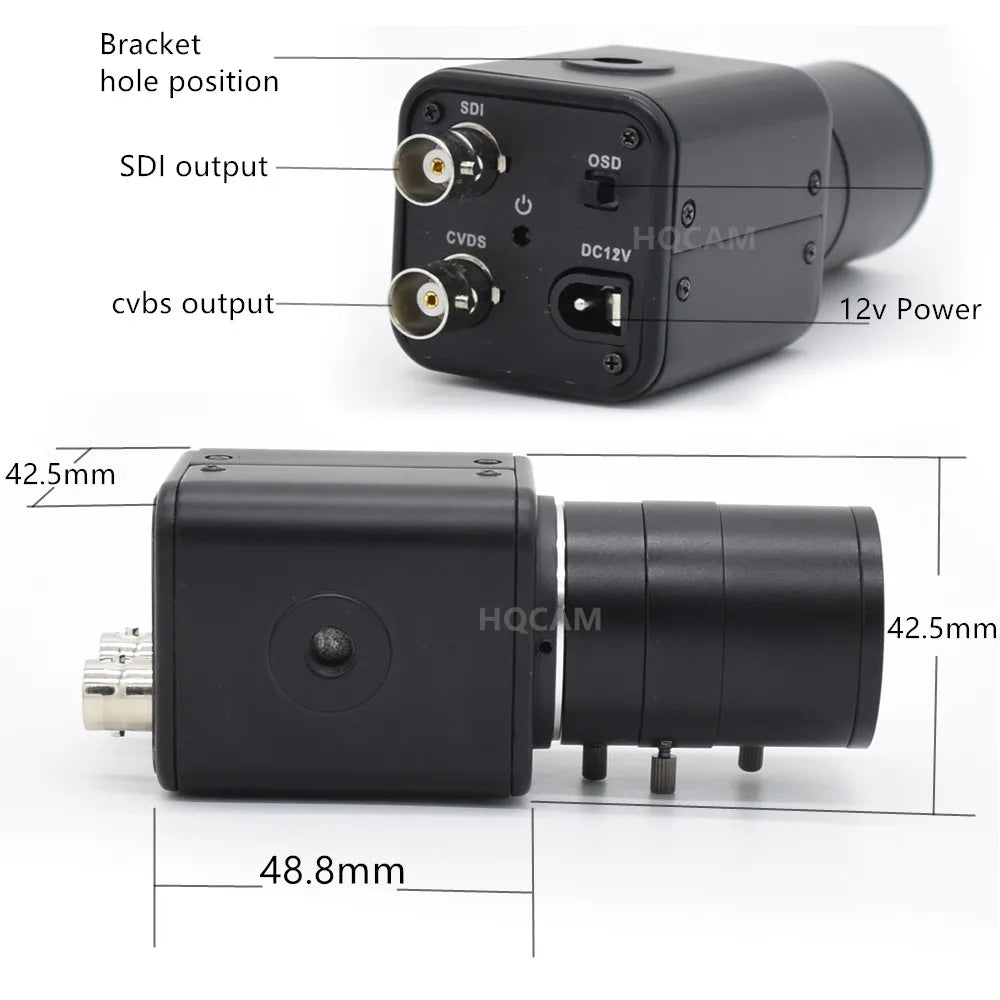

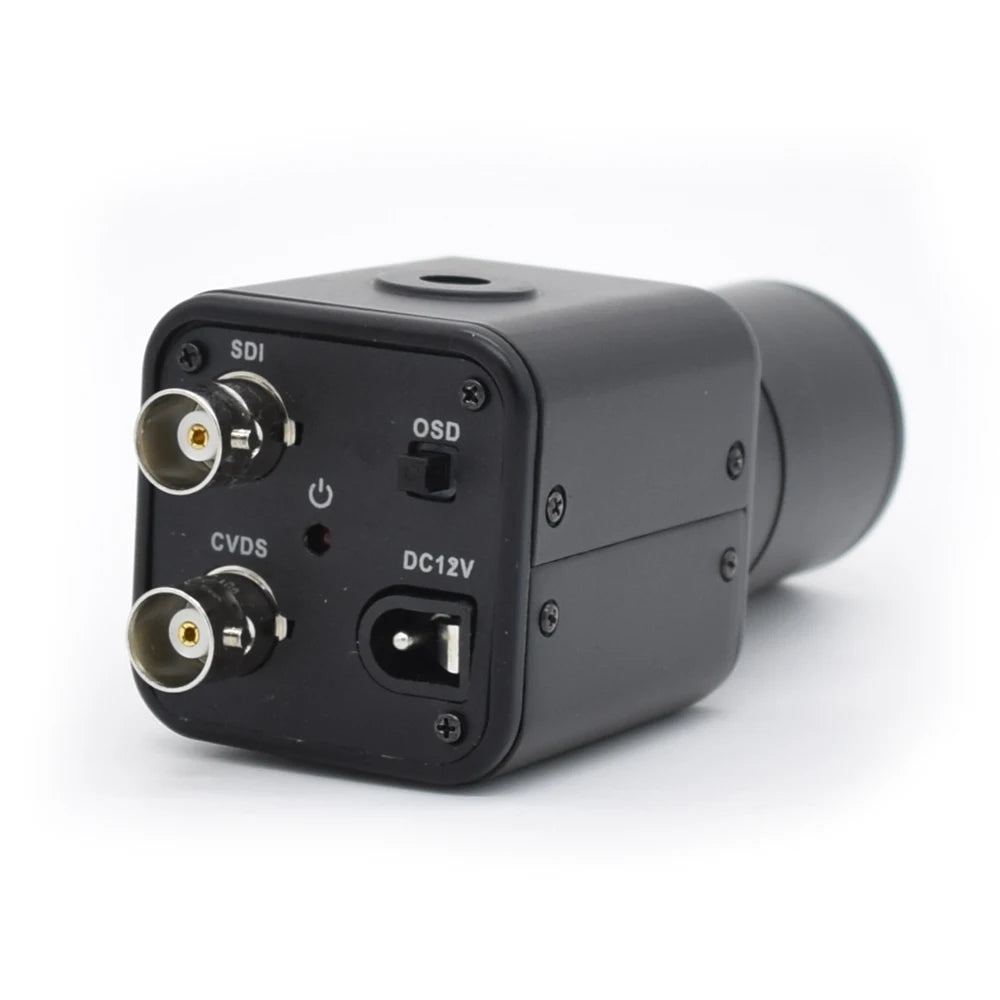

If the 1080p 50Hz and 60Hz images cannot be displayed properly, please use the CVBS output to display the screen and access the OSD menu. Change the resolution to 1080p 30Hz or lower, and then the output will work normally.

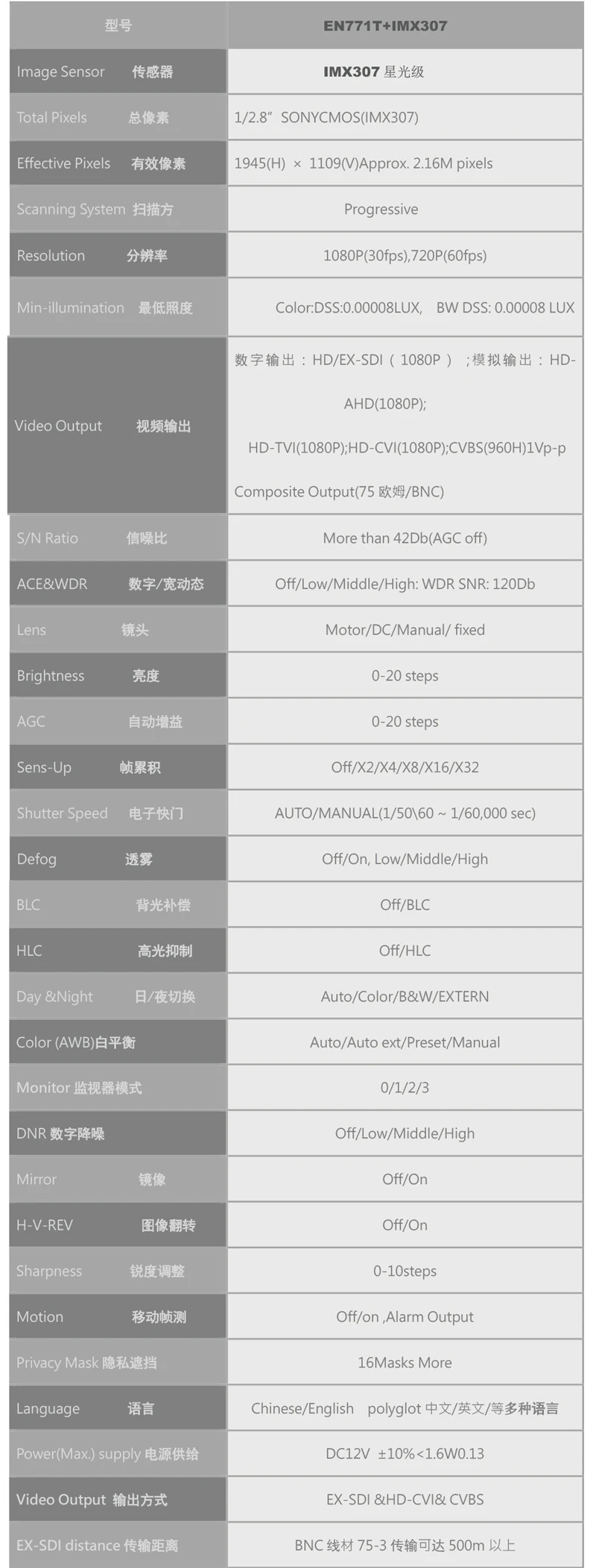

Specification IMX307 30fps:

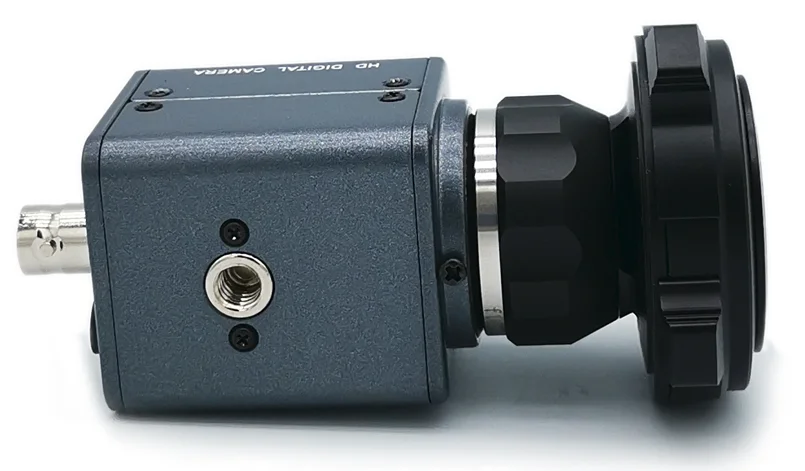

This module can be used for medical endoscope, underwater camera, industrial inspection equipment, robot video vision and other projects. Our company has been producing SDI camera for 10 years and can customize IT to OEM. Please consult me!
